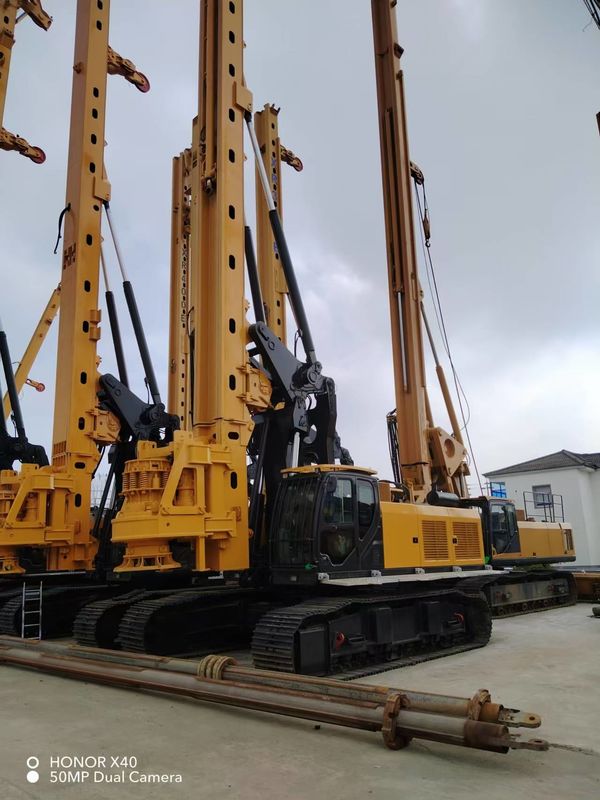

2021 Stable Operation XCMG XR240E Piling Rig Machine With Double Boom Parallelogram Mechanism

2021 Stable Operation XCMG XR240E Piling Rig Machine with Double Boom Parallelogram Mechanism

XCMG XR240E rotary drilling rig performance characteristics

1. One machine has multiple functions, which can realize the rapid switching of cylinder pressurization, winch pressurization, pipe rubbing machine, long screw, double power head and other functions to meet more different engineering construction needs;

2, equipped with Isuzu electronically controlled turbocharged engine, lower fuel consumption, convenient and fast service;

3. The working performance of power head and main winch is improved by 20%, and the working efficiency is higher;

4, the power head can be equipped with torque multiplier (optional), the casing driving torque up to 360kN•m, the ability to lower the casing is stronger;

5. Single row rope technology is adopted for both main and sub-winch. The life of wire rope is 2~4 times longer than that of multi-layer rope, and the use cost is lower;

6, the use of double boom large parallelogram variable amplitude mechanism, large support Angle, support range increased by 16%, more stable operation;

7, the main hydraulic system adopts negative flow control technology, fast response, good control performance;

8, high power temperature control independent hydraulic oil cooler, meet the high temperature area construction, and can adjust the fan speed with the temperature change, to achieve energy saving;

9. The intelligent control system realizes the functions of automatic adjustment and display of vertical degree of drill mast, automatic rotation, automatic soil dumping, automatic improvement of perfusion and pile type display by long spiral method. The bus panel design is adopted to prevent misoperation.

10, chassis can be equipped with transport leg (optional), remote control operation, transport transfer more convenient, safe.
